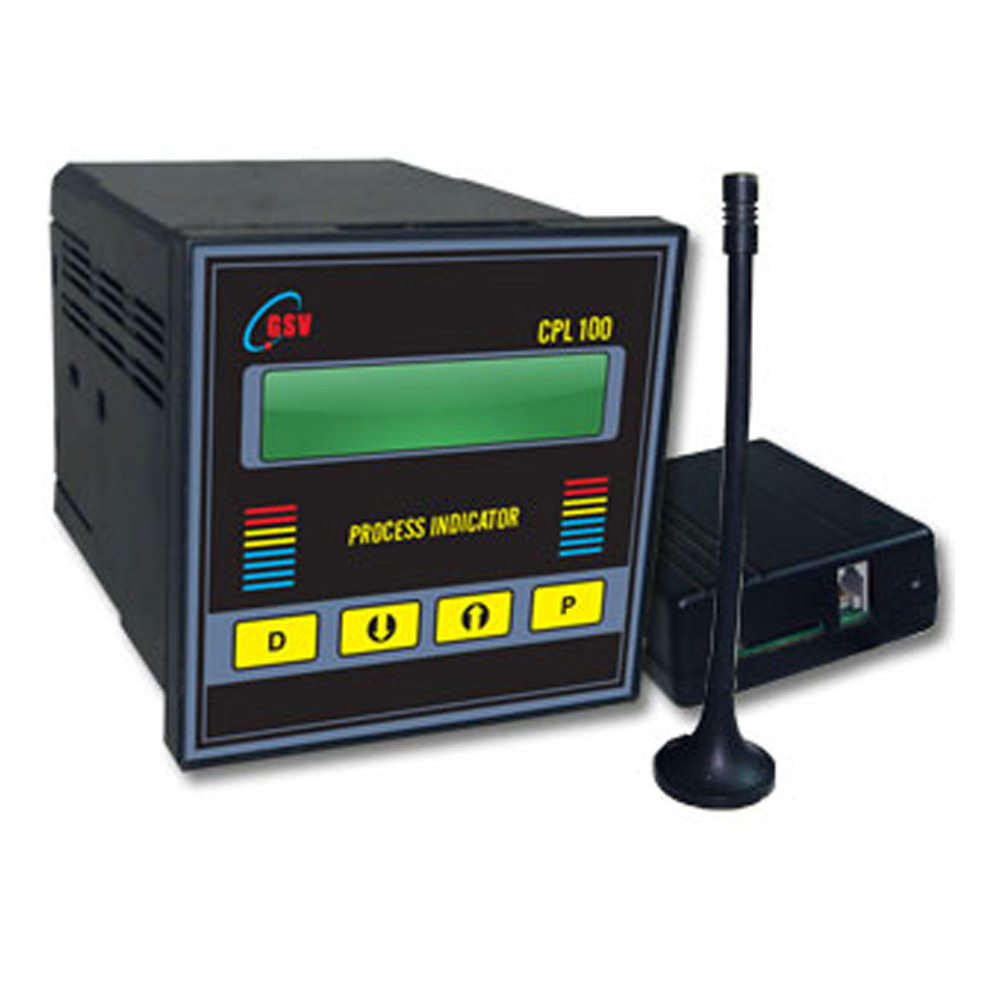

CPL100 instruments measure and display process parameters like level, Pressure, Temperature, Flow, Vibration, Humidity, Wind Speed and more.
CPL100 has Real Time Clock and internal EEPROM which Stores the level and volume to External EEPROM at time intervals specified by the user. Saves a maximum of 10000 records (Level , Volume ,Time and Date of Event occurrence). CPL100 has RS-232 Output for GSM connectivity which is compatible for SIM300 GSM Communication to central monitoring station through GPRS, Data Call, short Message Service. Here User can program 10 phone numbers to which data will be sent through SMS also User can demand the controller for the present values whenever necessary by sending a SMS to the controller for which the controller in turn replies with the values These instruments accept a voltage or current input and convert them to the programmed process variable.
These instruments also have the capability to switch on relay(s) based on user settings.
These outputs can be used for process set points and alarms, and for controlling pumps. These instruments are panel mount instruments Optional features includes: Upto 2 relays can be programmed using 4 setpoints and current output of 4-20mA.
